Chemical Dosing Pump
The Variflow Dosing Metering Diaphragm Pumps - GP Series is from 0 - 100 LPH giving a maximum pressure of 70 Bar depending upon the flow rate. These pumps are provided with high efficiency ball valves & high grade of engineering materials for the wetted parts, which enables wide range of aggressive, toxic, hazardous liquid to be handled in the absence of any gland ,which offers zero leakage.
Technical Details
| CAPACITY | MAX - 100 LPH |
| PRESSURE | MAX - 70 BAR |
| MOC |
SS 304 / SS 316 / SS 316 L / PP / PTFE or any other as required |
| MOTOR POWER | 0.5 HP , RPM : 1450 |
| MOTOR TYPE |
STANDARD / FLAME PROOF / VFD COMPATIBLE / ENERGY EFFICIENT or any other as required |
| POWER SUPPLY |
SINGLE / THREE PHASE, 50/60 HZ, 230V / 380V / 415V or any other as required |
| APPLICATION | DOSING / METERING / INJECTION / MIXING / FEEDING / SAMPLING |

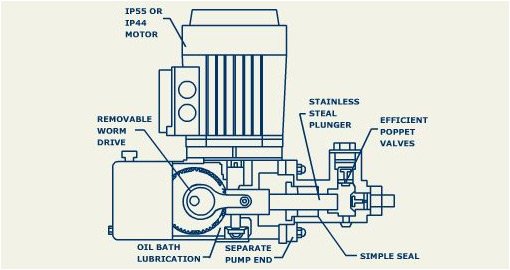

PRODUCT CHART – GFS SERIES
| PUMP MODEL | WORKING CAPACITY (LPH) | WORKING PR. (KG/CM²) | SPEED (SPM) | END CONNECT | MOTOR HP |
|---|---|---|---|---|---|
| GFS # 16–16 | 136 | 20.6 / 41.4 | 240 | ½" × ½" BSP | 0.5 / 1.0 |
| GFS # 16–24 | 250 | 12.4 / 25.0 / 37.2 / 41.4 | 240 | ½" × ½" BSP | 0.5 / 1.0 / 1.5 / 2.0 |
| GFS # 22–16 | 313 | 10.3 / 20.6 / 31.0 / 41.4 | 240 | ½" × ½" BSP | 0.5 / 1.0 / 1.5 / 2.0 |
| GFS # 26–18 | 454 | 6.9 / 13.8 / 24.0 / 31.0 | 240 | ¾" × ½" BSP | 0.5 / 1.0 / 1.5 / 2.0 |
| GFS # 28–18 | 590 | 5.2 / 10.3 / 18.3 / 24.0 | 240 | ¾" × ½" BSP | 0.5 / 1.0 / 1.5 / 2.0 |
| GFS # 26–24 | 680 | 4.5 / 9.0 / 16.0 / 20.7 | 240 | ¾" × ½" BSP | 0.5 / 1.0 / 1.5 / 2.0 |
| GFS # 28–24 | 860 | 3.4 / 7.2 / 12.4 / 16.5 | 240 | ¾" × ½" BSP | 0.5 / 1.0 / 1.5 / 2.0 |
*** Our policy is to continually develop and improve our products and we therefore reserve the right to modify products without any notice.***
