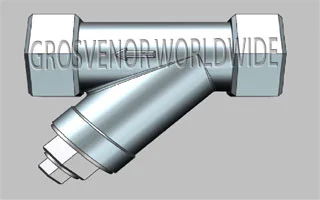

Y Type Strainer
Grosvenor provides customers with a wide range of Y-type strainers that function as a filtering medium in suction lines. These strainers filter out solid substances larger than the wire mesh size, allowing only clean fluid to pass through. We offer our range in SS 304, SS 316, PP (Polypropylene), and PTFE (Teflon) lined materials in various sizes to meet diverse customer requirements.
Features
- ✔ Robust Construction
- ✔ Compact Design
- ✔ High Efficiency
- ✔ Precisely Designed
- ✔ Hassle-Free Functionality
Product Specifications
| Size Range | 15mm / 25mm / 40mm / 50mm / 65mm / 80mm / 100mm |
|---|---|
| End Connections | Flanged End / BSP End (Screw End) |
| M.O.C. | SS 304 / SS 316 / PP / PTFE (Teflon) Lined |
| Pressure Rating | Class 150 / 300 / 600 |
Service Conditions
- For maximum protection, collected material must be discharged through the blow-off connection on a routine basis.
- A permanent blow-down line and ball valve with each strainer will result in simplified cleaning.
- Install horizontally or vertically with dirt collecting inside the screen.
- Screen can also be removed and cleaned with solvent and compressed air.
- Inspect the gasket and replace if necessary when replacing the screen.
*** Our policy is to continually develop and improve our products and we therefore reserve the right to modify products without any notice.***
